Mobile Radial Telescopic Stackers For Bulk Materials Conveying
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | SSI |
| Sertifika: | manufacture certificate |
| Model numarası: | Özelleştirilmiş |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | US $500,000-1,000,000/ Set |
| Ambalaj bilgileri: | Çıplak |
| Teslim süresi: | Peşin ödemenin alınmasından 6 ay sonra |
| Ödeme koşulları: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Yetenek temini: | 40 set / yıl |
|
Detay Bilgi |
|||
| Kapasite: | 500 ton/saat | Ürün: | mobil radyal teleskopik konveyör bant |
|---|---|---|---|
| Tablo: | Uluslararası | color: | yellow |
| Motor: | ABB | kumlama: | Sa2.5 |
| Karakter: | Dayanıklı | Çerçeve: | Karbon çelik |
| Vurgulamak: | Mobile Radial Telescopic Stackers,500 t/h Mobile Radial Telescopic Stackers,Mobile Radial Telescopic Stackers For Bulk |
||
Ürün Açıklaması

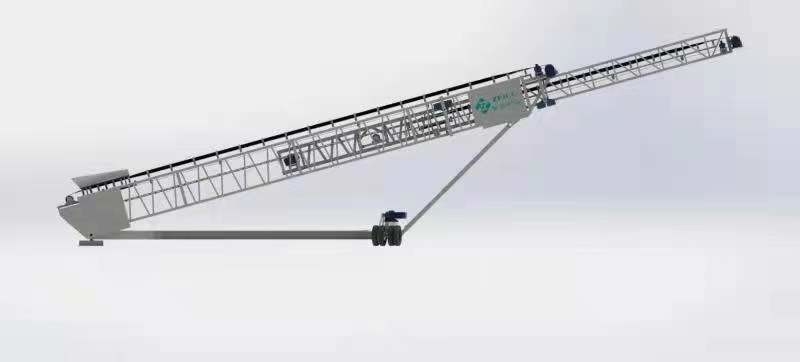

Mobile radial telescopic stackers for bulk materials conveying
A flexible articulation system process for metallurgical raw materials, chemical yards, bulk material terminals, construction aggregates, fuel yards, etc. Through a long-distance tape machine, the front end is connected to the pick-up system and the back end to the stockpile system. The mobile radial telescopic bulk material handling system is one cost-efficient and effective way of stockpiling material in the stockyard.
Mobile Radial Telescopic Belt conveyor Stacker is a new type of belt machine developed for transporting coal, which can connect coal mining machines and various equipment, and is an important linkage to ensure the automatic production operation of coal mining, and can also be used in various terminals and freight transportation, which can be used in mining, coal, metallurgy and other industries to realize long time and long-distance transportation by technical means, and according to the different sites and distances of different coal mines, it can be assembled into a professional horizontal conveyor. Multiple units can be assembled into a professional horizontal or inclined system to meet different sites and different equipment arrangements.
Through reasonable improvements, according to the special characteristics of mines, where a large number of materials are powdery and irregular, mining conveyors must use high-strength conveyor belts to ensure the safety continuity of the conveying process. Using wire rope traction and wire rope core belt conveyor, the belt conveyor for mines uses flame-retardant tape or plastic belt, and the use of plastic belt should have measures to prevent static sparking. Suitable for large and medium-sized mines uphill, downhill, inclined shaft lifting and long-distance horizontal and other major transport industry conveyor
Specification of mobile radial telescopic stacker
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) |
Diameter of pulley(mm)
|
Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |
Case1
Mobile radial telescopic stacker for iron ore handling at the site in Africa.
Case2
Mobile radial telescopic stacker for a pile of gravel handling at the opencast.
case 3
Mobile radial stacker for coal loading into the vessel at the port in southeast country.
Photos of our factory
